Product name: AC/DC voltage divider
Product specifications: XSN-SGB-01
Product introduction:
1. High precision: Using precision high-voltage film capacitors and precision high-voltage glass glaze resistors, the input impedance is high, the test current is reduced, the power consumption is small, and the measurement accuracy and stability of the instrument are improved.
The signal processing part uses high-performance OP for signal amplification, double-integral AD sampling technology, four-and-a-half-digit liquid crystal display, and a maximum resolution of 0.001kV. It is an updated product of high-voltage electrostatic voltmeter.
2. Good anti-interference performance: special shielding technology is adopted. The surface of the pressure equalizing ball of aluminum alloy material is smooth and shiny, which effectively improves the electric field distribution around the equalizing ball, prevents top discharge, and improves the anti-interference ability of the measurement data. The low-voltage display instrument adopts all-metal enclosed structure shielding, and the high-voltage divider and the low-voltage display meter are connected by high-quality coaxial cables to reduce the influence of high voltage on the indication value, thereby achieving high stability and high linearity.
3. Safe and reliable: SGB-C series AC/DC digital high voltage meter is composed of high voltage divider and low voltage display instrument. The high voltage divider uses American DuPont filling material, special process potting, smaller structure, lighter weight, internal partial discharge The volume is reduced to a minimum and the reliability is higher. There is no oil leakage problem. When working, the high-voltage divider and the low-voltage instrument are connected by coaxial cables, and the high and low voltage parts are far away, so the work is safe and reliable. To
4. Simple operation: It is convenient and quick to switch between high and low voltage, AC and DC by using a dial switch. Four and a half LCDs directly display the measurement results, simple and intuitive. It brings great convenience to the on-site inspection work.
5. Easy to carry: It adopts a portable structure, and the whole machine uses an aluminum alloy packaging box as the casing, which can be easily disassembled and assembled. Small size, light weight, easy to carry, and very convenient to use.
Product nicknames: high voltage tester, digital high voltage meter, high voltage measuring instrument, high voltage meter, high voltage digital meter, voltage divider, resistance-capacitance voltage divider, electrostatic voltmeter, high voltage divider, AC and DC voltage divider, AC and DC high voltage Meter, AC and DC high voltage divider, AC voltage divider, DC voltage divider, AC and DC dual-purpose high voltage test device, resistance-capacitance AC and DC voltage divider, AC and DC resistance-capacitance voltage divider, AC and DC digital voltage divider , KV voltmeter, KV meter, FRC type AC and DC voltage divider.
Test object:
Power system and electrical and electronic equipment manufacturing departments measure power frequency AC high voltage and DC high voltage.

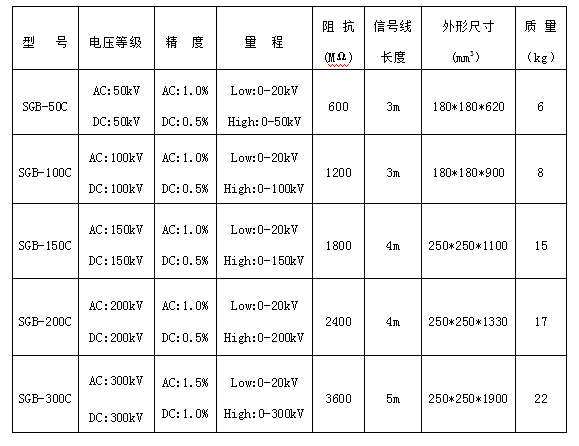

technical parameter:
